Yare-20
|
|

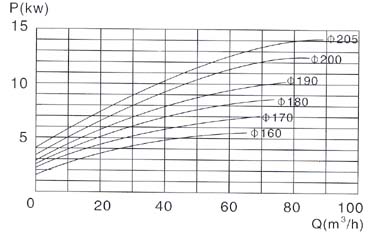

Performance Curve
(Safety tolerance should be reserved when selecting motor power) |
 |
 |
 |
| Medium:20¡æclean water |
RotatingSpeed:2917RPM |
Inpeller:Max.Dia:205mm |
Inlet Diameter: §¶76.1mm,DN80 |
| Error: ¡À5% |
Frequency:50HZ |
Min.Dia:160mm |
Outlet Diameter: §¶63.5mm,DN65 | |
|

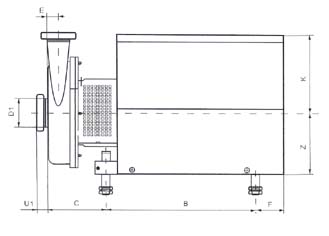

Size |
£¨Motor Power£© |
|
4 KW |
5.5KW |
7.5KW |
11KW |
15KW |
|
A |
190 |
216 |
216 |
254 |
254 |
|
B |
320 |
400 |
400 |
482 |
482 |
|
C |
154.5 |
159.5 |
159.5 |
191 |
191 |
|
E |
32 |
32 |
32 |
32 |
32 |
|
F |
88.5 |
72.5 |
112.5 |
95.5 |
95.5 |
|
H min |
207 |
215 |
215 |
238 |
238 |
|
H max |
277 |
305 |
305 |
330 |
330 |
|
K |
198.5 |
215.5 |
215.5 |
269.5 |
269.5 |
|
R |
106 |
106 |
106 |
106 |
106 |
|
T |
193 |
193 |
193 |
193 |
193 |
|
W |
272 |
322 |
322 |
372 |
372 |
|
Z |
147 |
167 |
167 |
195 |
195 |
|
£¨kg£©Weight |
74 |
93 |
103 |
153 |
164 | |
|
Size |
ISO |
ISO |
DIN |
SMS |
BS |
DIN |
|
D1 |
76.1 |
76.1 |
DN80 |
76.1 |
76.1 |
DN80 |
|
U1 |
21.5 |
21.5 |
26 |
24 |
21.5 |
24 |
|
D2 |
63.5 |
63.5 |
DN65 |
63.5 |
63.5 |
DN65 |
|
U2 |
21.5 |
21.5 |
26 |
24 |
21.5 |
24 | |
 |
 | |
|
|
|
