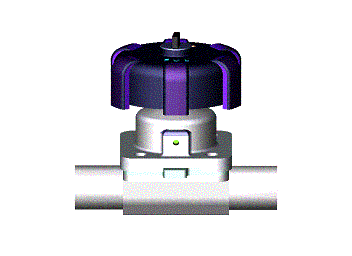

Manual diaphragm valves GN3314

DN	A	φB	H1	L	LS
15	73	90	14	120	26
20	73	90	14	120	26
25	73	90	14	120	26
32	90	114	14	153	30
40	90	114	14	153	30
50	111	140	8	173	31
65	142	214	17	216	28
80	142	214	17	254	47
100	160	214	25	305	38

Welded end Coupling Size Table:

	ISO	DIN	DIN11850			SMS.	NPS	BSO.D	ASTM269	JIS-G	JIS-G
		Recommend	Series 1	Series 2	Series 3	3008		4825	ASME BPE	3459	3447
DN	φd×s	φd×s	φd×s	φd×s	φd×s	φd×s		φd×s	φd×s	φd×s	φd×s
15	21.8×1.60	18×1.50	18×1.00	19×1.50	20×2.00		1/2″	12.70×1.20	12.70×1.20	21.7×2.10
20	26.9×1.60	22×1.50	22×1.00	23×1.50	24×2.00		3/4″	19.50×1.20	19.05×1.65	27.2×2.10
25	33.7×2.00	28×1.50	28×1.00	29×1.50	30×2.00	25.0×1.20	1″		25.40×1.65	34.0×2.80	25.4×1.20
32	42.4×2.00	34×1.50	34×1.00	35×1.50	36×2.00	33.7×1.20				42.7×2.80	31.8×1.20
40	48.3×2.00	40×1.50	40×1.00	41×1.50	42×2.00	38.0×1.20	1·1/2″		38.10×1.65	48.6×2.80	38.1×1.20
50	60.3×2.00	52×1.50	52×1.00	53×1.50	54×2.00	51.0×1.20	2″		50.80×1.65	60.5×2.80	50.8×1.50
65	76.1×2.00		72×2.00			63.5×1.60	2·1/2″		63.50×1.65	76.3×3.00	63.5×2.00
80	88.9×2.30		85×2.00			76.1×1.60	3″		76.20×1.65	89.1×3.00	76.5×2.00
100	114.3×2.30		104×2.00			101.6×1.60	4″		101.60×2.11	114.3×3.00	101.6×2.00

	ISO	DIN	DIN11850			SMS	NPS	BSO.D.	ASTM269	JIS-G	JIS-G
						3008		4825	ASME BPE	3459	3447
DN	φd×s	φd×s	φd×s	φd×s	φd×s	φd×s		φd×s	φd×s	φd×s	φd×s
15	21.8×1.60	18×1.50	18×1.00	19×1.50	20×2.00		1/2″	12.70×1.20	12.70×1.20	21.7×2.10
20	26.9×1.60	22×1.50	22×1.00	23×1.50	24×2.00		3/4″	19.50×1.20	19.05×1.65	27.2×2.10
25	33.7×2.00	28×1.50	28×1.00	29×1.50	30×2.00	25.0×1.20	1″		25.40×1.65	34.0×2.80	25.4×1.20
32	42.4×2.00	34×1.50	34×1.00	35×1.50	36×2.00	33.7×1.20				42.7×2.80	31.8×1.20
40	48.3×2.00	40×1.50	40×1.00	41×1.50	42×2.00	38.0×1.20	11/2″		38.10×1.65	48.6×2.80	38.1×1.20
50	60.3×2.00	52×1.50	52×1.00	53×1.50	54×2.00	51.0×1.20	2″		50.80×1.65	60.5×2.80	50.8×1.50
65	76.1×2.00		72×2.00			63.5×1.60	2 1/2″		63.50×1.65	76.3×3.00	63.5×2.00

Operation Mode: Manual

Maximum Working Pressure: 10 kg (silicone, fluorinated rubber

6 kg (poly-tetra-fluoro-ethylene)

Maximum Working Temperature: 80 ℃ ( Resist to high-temperature sterilizing )

Diaphragm Material: Silicone, fluorinated rubber, poly-tetra-fluoro-ethylene

Valve seat material : Stainless steel 304, 316L

Coupling Mode: welded end coupling above table

Clamp end end Coupling Code: GN 4814
