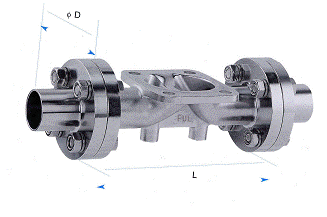

Flanged-end direct-flow-path diaphragm Valves
|
Sanitary flanged coupling
For the condition of high-pressure lean
Offer custom-made service, such as flanged
coupling one side welded end coupling for
the other side
|
|
| DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
| L(mm) |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
| D(mm) |
59 |
64 |
70 |
76 |
82 |
94 |
123 |
133 |
159 |
|
|
|
|
